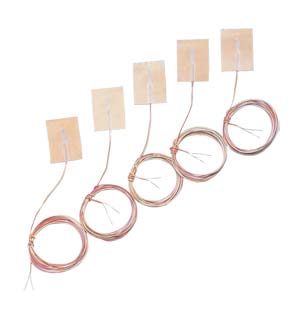

Fast-Response Thermocouples with Self-Adhesive Backing

SA1-(*)-72-SC

Vedi tutti i modelli qui sotto

INVIA ORDINE

Self-Adhesive Backing for Easy Installation
Better Than 0.3 Second Response Time
0.9 m (36") Color-Coded PFAInsulated Leads
Rated to 175°C (347°F) Long Term
Available in J, K, T, and E Calibrations

Descrizione

OMEGA’s self-adhesive thermocouples are designed for fast measurement of surface temperature. These sensors are manufactured from 30 AWG PFA-coated thermocouple wire, with a flattened bead secured between a high-temperature polymer and a high-temperature, fiber-reinforced polymer. This combination affords good thermal conductivity and fast response. The self-adhesive backing makes installation easy; no epoxy or cement is required.

Thinking of Automating?

For RTD sensor automation projects that interface with PLC's (with RTD inputs), HMI's, stepper motors & drives, visit OMEGAMATION.COM for your automation product needs. NEMA enclosures, RTD & standard terminal blocks, and hook-up wire along with pneumatically controlled products including actuators, fittings, valves and tubing are in stock.

SPECIFICATIONS
Thermocouple Calibrations:
    J: Iron-constantan
    K: CHROMEGA™-ALOMEGA™
    T: Copper-constantan
    E: CHROMEGA™-constantan
Adhesive: Silicon-based cement
Max Temp: 175°C (347°F) continuous
Min Temp: -60°C (-75°F) continuous
Laminates: High-temperature polymer, fiberglass-reinforced polymer layers
Wire: 0.9 m (36") leads, 30 AWG PFA coated

† Tutti gli importi indicati in EUR

Combinare codice prodotto

Costruisci il Tuo Codice Prodotto Qui Sotto

(1)		(2)	(3)	(4)
	SA1-

Descrizione delle opzioni:

(1) Number of Thermocouples Seleziona da:
5 per 5 pack

(2) Thermocouple Type Seleziona da:
J per J Thermocouple
K per K Thermocouple
T per T Thermocouple
E per E Thermocouple

(3) Length Seleziona da:
Niente (lasciare il campo vuoto) per 36" long
-72 per 72" long

(4) Ending Seleziona da:
Niente (lasciare il campo vuoto) per Stripped Ends
-SC per Spool Connector

Nota: Non tutte le combinazioni possono essere valide, controlla il foglio delle specifiche per codici prodotti corretti.
