Processor Based Data Acquisition Boards for the PCI Bus
Discontinued Product

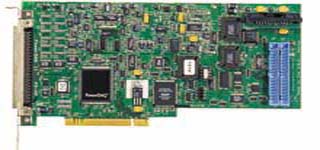

PowerDAQ PCI A/D Boards

Vedi tutti i modelli qui sotto

INVIA ORDINE

16 Single Ended/ 8 Differential A/D Inputs or 64 Single Ended/ 32 Differential A/D Inputs
1.25 MS/s 12-bit Resolution
400 kS/s 14-bit Resolution
333 kS/s, 50 kS/s 16-bit Resolution
Programmable Gain 1, 10, 100, 1000 or 1, 2, 4, 8
2, 12-bit, 200 kHz D/A’s WaveForm Quality
16 Digital Input (8 Can Generate Interrupts) 16 Digital Output
3, 16-bit User-Dedicated Counter/Timers
Simultaneous A/D, D/A, DIO, Counter/Timer Subsystems Operation
Bus Mastering DMA Extensive Clocking and Triggering for A/D and D/A
No Jumpers or Switches
Auto Calibration

Descrizione

The PowerDAQ is no longer available. Please see the OMB-DAQBOARD-2000 as a possible substitute or consult our data acquisition engineering department.

PowerDAQ II is the next generation multifunction analog and digital I/O board for the PCI bus. The PowerDAQ II boards have been developed with new “clean” 32-bit drivers for Windows95 and Windows NT, hence no legacy code. The PowerDAQ II series is designed around a “processor based” 24-bit 66 MHz Motorola 56301 PCI DSP interface. This design allows the user to offload the host CPU data acquisition functions to the onboard DSP thus giving the user the power of two CPUs in one PC. Each PowerDAQ II multifunction board is comprised of four subsystems, Analog Input, Analog Output, Digital I/O and Counter/Timers. PowerDAQ technology allows all the subsystems to run simultaneously and/or independently with one or multiple boards in the same PC. You can start and stop multiple subsystems as required. The PowerDAQ II -based boards all feature extensive hardware and software triggering. Data transfer methods include slave mode and bus mastering operation. Several different models of the PowerDAQ II boards are available. The models differ in resolution, speed, input range and number of channels.
For complete product specifications see the Related Links section at the bottom of this page.

Ordinare(Specificare il codice prodotto)

Codice prodotto/Desc.

Q.tá

Descrizione

PD2-MF-16-400/14H

Consultare l'Ufficio Commerciale

Stock:

14 Bits Analog/Input Board

PD2-MF-16-333/16H

Consultare l'Ufficio Commerciale

Stock:

16 Bits Analog/Input Board

PD2-MF-64-333/16L

Consultare l'Ufficio Commerciale

Stock:

16 Bits Analog/Input Board

† Tutti gli importi indicati in EUR
Nota: All PowerDAQ boards include a complete user’s manual, Quick Start application and driver software.
