Analog Output Boards
Discontinued Product! See Note Below

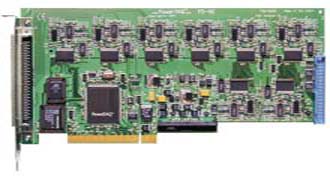

PowerDAQ PCI D/A Boards

Vedi tutti i modelli qui sotto

INVIA ORDINE

Analog outputs (choice of 8, 16 or 32 16-bit channels)
Digital inputs (8 lines)
Digital outputs (8 lines)
Three 24-bit counters/ timers
Three clock/interrupt lines
Channel list
User defined power-on state
Simultaneous channels update
Onboard buffer size: 2k samples

Descrizione

The PD2 DAO Series is no longer available. Please see the OMB-DAQBOARD-2000 Series as a substitute or contact Sales/Data Acquistion Engineering.

Offering as many as 32 analog outputs with 16-bit resolution, PD2-AO PCI-bus boards,also includes 16 digital I/O lines and three counter/timers. With these functions, the PD2-AO is well suited to implement complex closed-loop systems as well as handle motor control and many other industrial-automation tasks. The card calibrates each analog output individually without using trimpots and instead relies on a special D/A-based scheme that stores calibration coefficients in EEPROM and loads them automatically upon power up. This method also keeps board outputs in a predefined user-programmable state upon system startup.

For complete product specifications see the Related Links section at the bottom of this page.

Ordinare(Specificare il codice prodotto)

Codice prodotto/Desc.

Q.tá

Descrizione

PD2-AO-8/16
