NEMA Type 12 Large Continuous Hinge Enclosures Discontinued

SCE Series ALP/BLP

NEMA Type 12 Large Continuous Hinge Enclosures | SCE Series ALP/BLP

NEMA Type 12 Large Continuous Hinge Enclosures

Vedi tutti i modelli qui sotto

INVIA ORDINE
1 anno di garanzia
  • 0.075" Carbon Steel
  • Seams Continuously Welded and Ground Smooth, No Holes or Knockouts
  • Continuous Hinge
  • Rivnut/Screw Fastened Cover
  • Oil Resistant Gasket
  • Studs for Mounting Optional Panels
  • Ground Stud on Door
  • Removable Print Pocket Furnished if Height and Width of Enclosure is 24" or More

Descrizione

This enclosure series has been discontinued. Please see the SCE-LP as a possible alternative or contact our Automation Engineering department.

Application
Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, oil and water.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 12 & Type 13
UL Listed Type 12
CSA Type 12
IEC 60529 IP 55

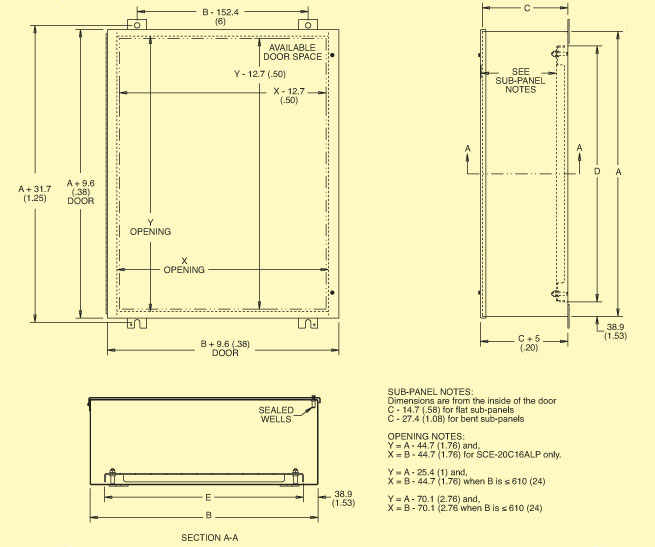

SCE_LgContHinge Series Dimensional Diagram
Ordinare(Specificare il codice prodotto)
Codice prodotto/Desc.
Q.tá
Descrizione
ENCLOSURES
SCE-20C16ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=20.00 Width=16.00 Depth=7.00
SCE-20C16BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=20.00 Width=16.00 Depth=9.00
SCE-20C20ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=20.00 Width=20.00 Depth=7.00
SCE-20C20BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=20.00 Width=20.00 Depth=9.00
SCE-24C20ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=24.00 Width=20.00 Depth=7.00
SCE-24C20BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=24.00 Width=20.00 Depth=9.00
SCE-24C24ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=24.00 Width=24.00 Depth=7.00
SCE-24C24BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=24.00 Width=24.00 Depth=9.00
SCE-24C24CLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=24.00 Width=24.00 Depth=11.00
SCE-30C20ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=30.00 Width=20.00 Depth=7.00
SCE-30C20BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=30.00 Width=20.00 Depth=9.00
SCE-30C24ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=24.00 Width=20.00 Depth=7.00
SCE-30C24BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=30.00 Width=24.00 Depth=9.00
SCE-30C24DLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=36.00 Width=24.00 Depth=13.00
SCE-36C24ALP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=36.00 Width=24.00 Depth=7.00
SCE-36C24BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=36.00 Width=24.00 Depth=9.00
SCE-36C24CLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=36.00 Width=24.00 Depth=11.00
SCE-36C30BLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=36.00 Width=30.00 Depth=9.00
SCE-36C30DLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=36.00 Width=30.00 Depth=13.00
SCE-48C36CLP
Consultare l'Ufficio Commerciale
Stock:


Enclosures, Height=48.00 Width=36.00 Depth=11.00
SUB-PANEL
SCE-20P16
€82.94
Stock: 5 settimane

Sub-Panel, Height=17.00 Width=13.00
SCE-20P20
€114.94
Stock: 1 settimana

Sub-Panel, Height=17.00 Width=17.0
SCE-24P20
€131.10
Stock: 5 settimane

Sub-Panel, Height=21.00 Width=17.00
SCE-24P24
€143.97
Stock: 1 settimana

Sub-Panel, Height=21.00 Width=21.00
SCE-30P20
€166.33
Stock: 5 settimane

Sub-Panel, Height=27.00 Width=17.00
SCE-30P24
€167.03
Stock: 1 settimana

Sub-Panel, Height=27.00 Width=21.00
SCE-36P24
€210.25
Stock: 5 settimane

Sub-Panel, Height=33.00 Width=21.00
SCE-36P30
€281.13
Stock: 5 settimane

Sub-Panel, Height=33.00 Width=27.00
SCE-48P36
€400.78
Stock: 3 settimane

Sub-Panel, Height=45.00 Width=33.00
ACCESSORIES
Swing Out Panel Kits for NEMA Type 12 Enclosures - allows installation of sub-panels in front of enclosure with swing out access. more info

SCE-NADFK
€126.11
Stock: 3 settimane

Swing Out Panel Kits for enclosure sub-panels 30' or less.
SCE-NADFK-3
€164.28
Stock: 3 settimane

Swing Out Panel Kits for enclosure sub-panels larger than 30'.
† Tutti gli importi indicati in EUR
